Shanghai CDQC Electric Co., Ltd.
6 Years
| Ask Lasest Price | |
| Brand Name : | CDQC |
| Model Number : | permanent magnet synchronous motor |
| Certification : | CCC CE |
| Payment Terms : | T/T , L/C other |
| Supply Ability : | 8000sets per month |
| Delivery Time : | 30 work days |
| Price : | Negotiate |
Rated Power: 0.55kw-22kw.
Optional Parts: Encoder, Thermal protector,brake.
Stable design, Insulation F grade, IP55Protection level.
EC Standard

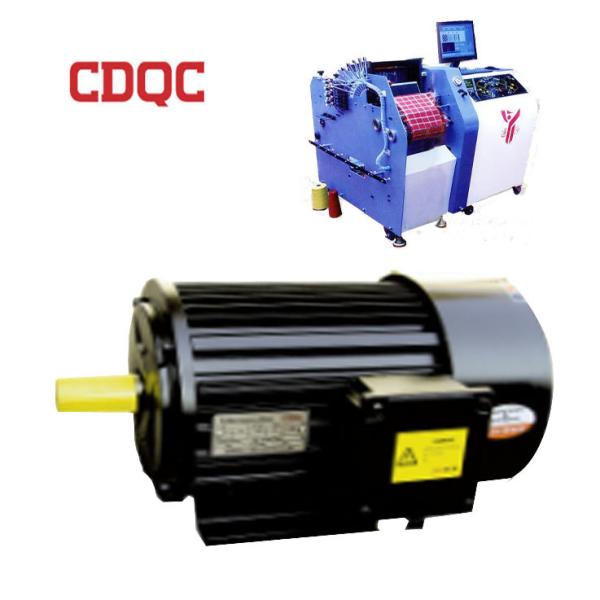

TP series three phase permanent magnet synchronous variable frequency motor is suitable for all kinds of transmission machinery. Used in nc machine, machinery, metallurgy, petroleum, chemical, pharmaceutical, textile, plastic, casting, printing, packaging, food and other industries, spindle power transmission and positioning control.
Product Features:
1, The components are reasonable.
2, with frequency conversion to achieve the better effect.
3, High-effeciency and saving energy.
4, With A short-term overload capacity of 150% overload.
5, Adopting vector control technology to realize low speed and high torque output.
6, High-quality materials make high temperature resistance, strong magnetism, good stability.
TP Series motor Technical Parameters:
| Model | TP80MA | TP80MB | TP90S | TP90L | TP100LA | TP100LB | TP112M | TP132S | TP132M | TP160M | TP160L | TP180M | TP180L |
| Rated Power | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 |
| Rated Current | 1.17 | 1.52 | 2.08 | 2.81 | 3.94 | 5.31 | 6.97 | 9.33 | 12.6 | 18.1 | 24.5 | 30 | 35.5 |
| Rated Voltage | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Rated frenque | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Efficiency | 78 | 82 | 87 | 88 | 90.5 | 91.5 | 92.5 | 94 | 95 | 96 | 96.5 | 97 | 97.5 |
| Pole | 4 | ||||||||||||
| Control Mode | V/F, Vector control | ||||||||||||
| Overload Capacity | 150%, 1 min | ||||||||||||
| Insulation Level | Class F Insulation | ||||||||||||
| Vibration Level | R | ||||||||||||
Selling Point
customers can choose according to the installation space. The design of high efficiency motor operation, lower temperature, lower cost,
longer service life, take time for application requirements in many industries.CDQC motors adopt frequency conversion to strengthen insu
lation treatment, enhance the reliability of winding insulation, prolong the service life of the motor. The utility model is suitable for the stepless
speed regulation of various industries.
service
1. We provide presales in our first cooperation, make clear your situation and give you some advice. We would give you a better ideal if you
need. We will give the details to each customer for reference, including the dimension, performance, quality and price level. For drawings,
Our R & D team is professianal enough.
COMPANY INTRODUCTION
CDQC specializes in the research and development, manufacturing, sales and service of various types of motors, covering an area of 20,000 square meters and having nearly 200 formal staff. We have a professional research and development team. They are constantly committed to the development and innovation of motor technology and our staff accepting serious training can use advanced motor testing platform and other professional testing equipment so that the quality of products have greatly improved. We have to ensure to provide customers with the highest quality and the most credible motor for their machine. At present, CDQC has developed into a new energy transmission base integrating materials, industry and trade.
|
|
