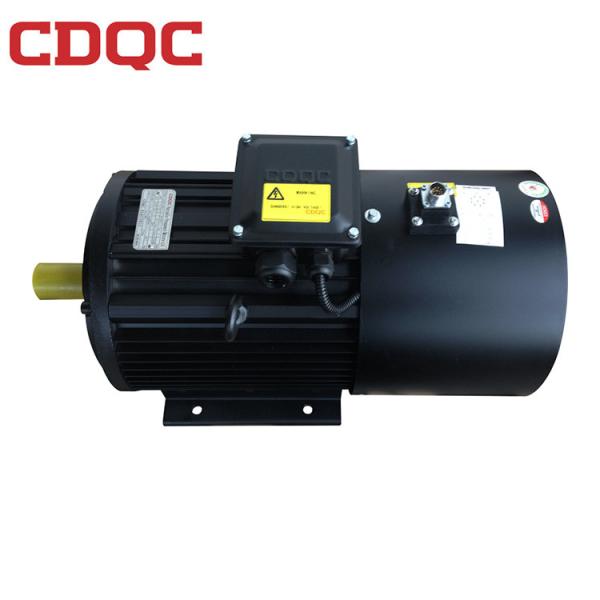

UABPD series three-phase asynchronous motor is the totally enclosed, fan-cooled induction motor for general purpose .
It was the newest product in the 90S' ,its overall level has reached the same products abroad at the beginning of 90S'level. The product apply to economic lake-off fields, such as machine tools, water pump, fan, compressor, also can be applied to transportation, stirring, printing, agricultural machinery, food and other kinds of excluding inflammable, explosive or corrosive gas.

Product introduction:

UABPD Series motors specialized apply for industry of industrial washing machine, standard variable frequency motor, stable, universality, cost-efficiency.

Product Features:

1,Universality- IEC Standard Variable Frequency motors,

2, High efficiency-Specialized for washing machine, powerful torque, Low speed.

3, Stable-adopted mature technology design, classic models.

4, High overload capacity. 150% max to 1 min.

5, Compact structure, smaller size.

6, Wide adjustment range of constant power.

7, Reliable quality, Class F insulation, IP54 Protection level.

Product Specifications

Rated Power: 0.37Kw-30Kw

IEC Standard

Reference speed: 750/1000/1500/3000/4500(r/min)

Stable design, Insulation F grade, IP54 Protection level.

Max Constant power: Minimum Constant power =1:3~1:4

Optional Parts: Encoder, Thermal protector
