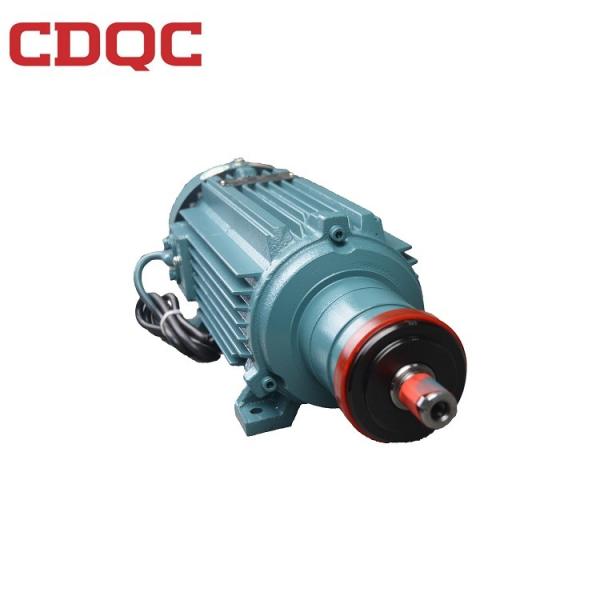

1HP Industrial AC Motor UAMT80A Three Phase Constant Speed Waterproof
UAMT80A Series Cast of Iron Three Phase Induction Motor is
specially designed for European market, whose terminal box is
located on
The top of motor. They are totally enclosed and fan-cooling
designed. They are newly designed in conformity with the relevant
Requirements / rules of IEC&DIN42673 standards.
Product introduction:
UAMT80A series motor mainly applied to the glass processing industry, glass edge grinding, glass shaping filed.
1, Use high accuracy bearings, axial float & radial run-out ≤ 0.01mm, 100% products passed dynamic balance detection, ensured low vibration and low temperature rising.
2, Grinding head direct connected to the motor, powerful!
3, The motor coil is dipped in vacuum environment, Class F insulation, longer lifespan.
4, Special water proof design sealing structure, with high temperature resistant materials, specialized for all kinds of working site.
5, Voltage: 380V/50HZ (Various voltage&frequency are available, 415V/380V/240/230V/220V/120V/110V, 50HZ/60HZ)
UAMT80A Series motor Technical Parameters:
Model | Rated Power (Kw) | Rated Voltage (V) | Rated Frequency (HZ) | Rated Current (A) | Rated Torch (N.m) | Rated Speed (rpm) | Efficiency (η) | Power Factor | TS / TN | TMAX / TN | IS / IN | Weight (Kg) |
UAMT80A-2P-1.5 | 1.5kw | 380V | 50HZ | 3.10A | 5.0 | 2830r /min | 81.9% | 0.89 | 3.3 | 3.3 | 6.6 | 26kg |
UAMT80A-2P-1.75 | 1.75kw | 380V | 50HZ | 3.60A | 5.9 | 2830r /min | 82.3% | 0.90 | 3.1 | 3.0 | 6.6 | 26.1kg |
UAMT80A-2P-2.2 | 2.2kw | 380V | 50HZ | 4.40A | 7.4 | 2840r /min | 84% | 0.91 | 3.6 | 3.4 | 7.4 | 28.0kg |
UAMT80A-2P-3.0 | 3.0kw | 380V | 50HZ | 5.82A | 10.0 | 2850r /min | 84.3% | 0.93 | 3.8 | 3.4 | 6.4 | 30.0kg |
UAMT80A-4P-1.5 | 1.5kw | 380V | 50HZ | 3.72A | 10.3 | 1385r /min | 77.5% | 0.77 | 3.3 | 2.7 | 5.3 | 26.5kg |
Electric Input: AC/380V/50HZ/3PHASE(Customized Service is available) Protection Level: IP54/Working Mode: S1/Insulation Class: F/Cooling mode: IC411/Noise70/Vibration Level:N | ||||||||||||
