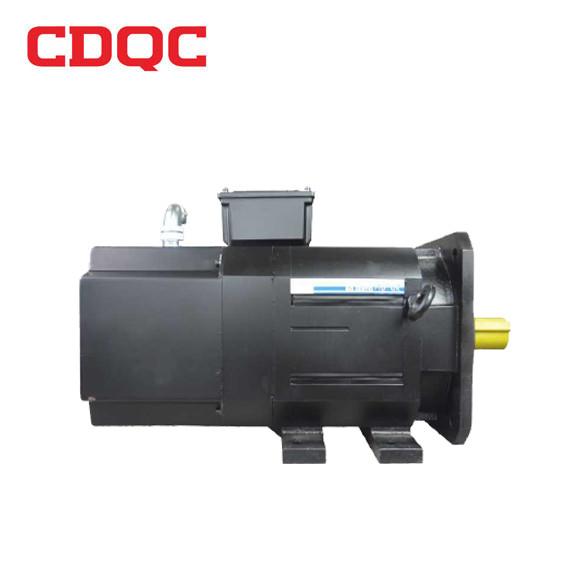

UBS Series Three-Phase Permanent-Magnet Synchronous Motor
UBS series AC servo spindle motor is design for textile and machine tool industry and other machines. It can solve the problem of speed fluctuation caused by uneven load, work with servo drives and frenquency converters.
1.Sometimes the power can be run for a short period of time ( within 30min).
2.Special inertia design made speed more swift than ordinary motor.
3.Max torque is 8000rpm.
4.Class F Insulation, IP55Protection
5.Constant The system noise is far below the national standard.
Product introduction:
| Model | Rated Power (KW) | Rated Voltage (V) | Rated Frenquency (HZ) | Rated Current (A) | Rated Torque (N.m) | Synchronous Speed (r/min) | Max Speed (r/min) | Driving Inertia (kgm㎡) | Fan Voltage (V) |
| UBS132S1-4 | 3.7 | 380 | 50 | 8.0 | 24.5 | 1500 | 8000 | 0.01259 | 200 |
| UBS132S2-4 | 5.5 | 11.7 | 36.3 | 0.01819 | |||||
| UBS132M1-4 | 7.5 | 15.5 | 49.5 | 0.02519 | |||||
| UBS132M2-4 | 5.5 | 33.3 | 11.9 | 55.6 | 1000 | 0.02519 | |||
| UBS132M3-4 | 9.5 | 50 | 19.7 | 62.0 | 1500 | 0.03009 | |||
| UBS160M1-4 | 9.5 | 18.9 | 62.0 | 0.04752 | 380 | ||||
| UBS160M2-4 | 11 | 21.8 | 71.9 | 0.05703 | |||||
| UBS160L1-4 | 15 | 29.3 | 98.1 | 0.06971 | |||||
| UBS160L2-4 | 18.5 | 36.5 | 120.7 | 0.08238 |
