Three Phase Electric Motor for Glass edging Line Machine
INTERDUCTION
UAMT90 series products are one of the star products in our company, It's suitable for the glass deep processing industry
of the process edge grinding, punching and chamfering. well-known bearings, 100% products passed dynamic balance detection,
makes our motor more reliable.
Machine features
Characteristics
Drawings
Thase Phase UAMT Series motor(2P) Technical Specification
Model | Rated Power Kw | Rated Voltage V | Rate Frequency HZ | Rated Current A | Rated Torch N.m | Rated Speed rpm | Efficiency η |
|---|---|---|---|---|---|---|---|
| UAMT90T-2P | 1.75 | 380 | 70 | 3.7 | 4.1 | 4060 | 83.0% |
| UAMT90T-2P | 2.2 | 380 | 50 | 4.6 | 7.4 | 2820 | 79.5% |
| UAMT90T-2P | 2.2 | 380 | 60 | 4.6 | 6.0 | 3450 | 83.6% |
| UAMT90T-2P | 2.2 | 380 | 70 | 4.6 | 5.2 | 4020 | 83.3% |
| UAMT90T-2P | 3.0 | 380 | 50 | 6.2 | 10.0 | 2860 | 83.0% |
| UAMT90T-2P | 3.0 | 380 | 60 | 6.1 | 8.3 | 3470 | 84.8% |
| UAMT90T-2P | 3.0 | 380 | 70 | 6.2 | 7.1 | 4040 | 84.5% |
| UAMT90T-2P | 4.0 | 380 | 60 | 8.1 | 11.0 | 3470 | 85.3% |
| UAMT90T-2P | 4.0 | 380 | 70 | 8.1 | 9.4 | 4050 | 85.4% |
Notice:Grinding motor shaft direction should be confirmed with the manager. Be sure to follow the special instructions when installing. | |||||||

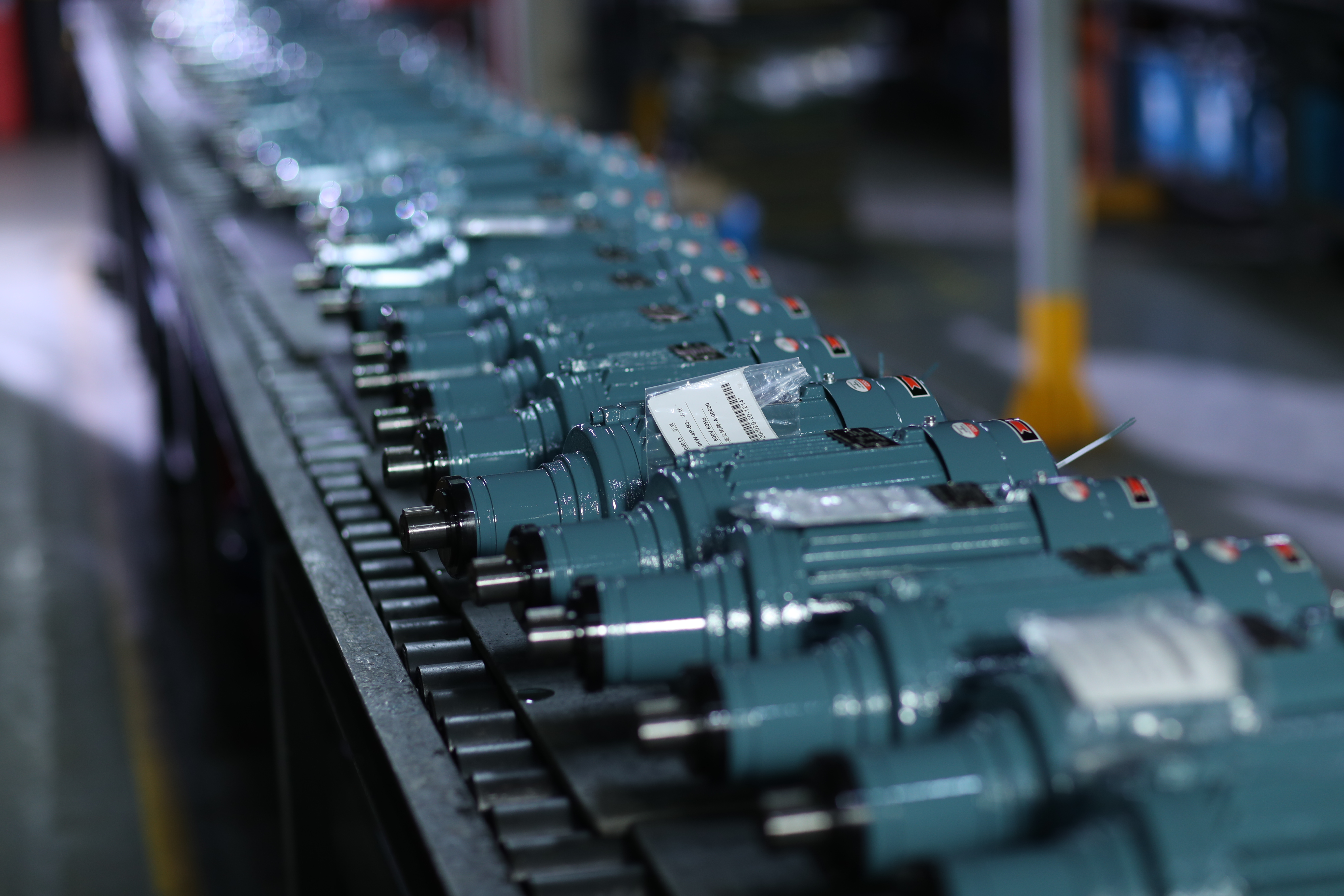

Motot Display
CE Certificates and Appendix
Company Profile
|
SHANGHAI CDQC ELECTRIC CO., LTD specializes in the research and development, manufacturing, sales and service of various types of motors, covering an area of 20,000 square meters and having nearly 200 formal staff. We have a professional research and development team. They are constantly committed to the development and innovation of motor technology and our staff accepting serious training can use advanced motor testing platform and other professional testing equipment so that the quality of products have greatly improved. We have to ensure to provide customers with the highest quality and the most credible motor for their machine. At present, CDQC has developed into a new energy transmission base integrating materials, industry and trade. |
|
|
